Product Summary

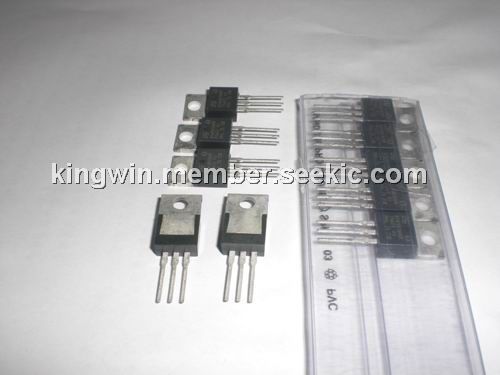

The BTW581500R is a fast gate turn-off thyristor. It is suitable for use in high-frequency inverters, resonatn power supplies, motor control, horizontal deflection systems etc. It has no reverse blocking capability.

Parametrics

Absolute maximum ratings: (1)transient off-state voltage, VDSM: 1650V max; (2)repetitive peak off-state votlage, VDRM: 1500V max; (3)working off-state voltage, VDW: 1300V max; (4)continuous off-state voltage, VD: 800V max.

Features

Features: (1)repetitive peak off-state voltage, VDRM: 1500V max; (2)non-repetitive peak on-state current, ITSM: 50A max; (3)controllable anode current, ITCRM: 25A max; (4)average on-state current, IT(AV): 6.5A max; (5)fall time, tf: <250ns.

Diagrams
