Product Summary

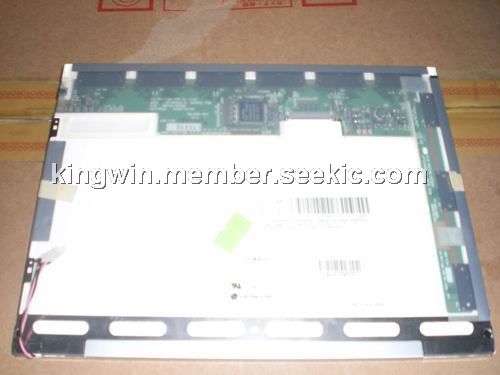

The LB104S01-TL01 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent Lamp (CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally white mode.
Parametrics
Absolute maximum ratings: (1)Power Input Voltage: -0.3 to 4.0 V at 25±5 ℃; (2)Operating Temperature: 0 to 50 ℃; (3)Storage Temperature: -20 to 60 ℃; (4)Operating Ambient Humidity: 10 to 90 %RH; (5)Storage Humidity: 10 to 90 %RH.
Features
Features: (1)Active Screen Size: 10.4 inches (264.16mm) diagonal; (2)Outline Dimension: 224.5(H) x 172.0(V) x 5.7(D) mm(Typ.); (3)Pixel Pitch: 0.264(H) mm x 0.264(V)mm; (4)Pixel Format: 800(H) By 600 (V) Pixels RGB stripes arrangement; (5)Color Depth: 6-bit, 262,144 colors; (6)Luminance, White: 250 cd/m2(Typ.); (7)Power Consumption: Total 4 Watt(Typ.); (8)Weight: 300g(Typ.); (9)Display Operating Mode: Transmissive mode, normally white; (10)Surface Treatment: Anti-glare& hard coating(3H).
