Product Summary

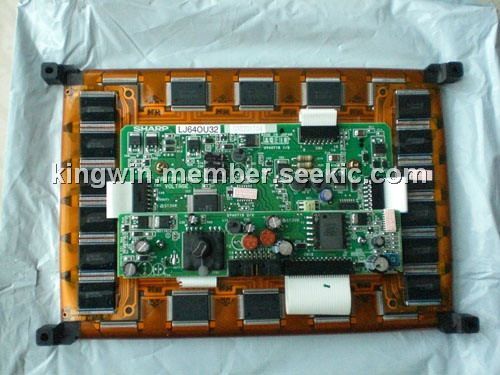

The LJ640U32 is a LCD Module.
Parametrics
Absolute maximum ratings: (1)interface signal(logic"H"), VIH: 5.5v; (2)interface signal(logic"L"), VIL: -0.5 v; (3)supply voltage(logic), VL: 7v; (4)supply voltage(panel drive), VD: 14v; (5)operating temperature, Topr: -5 to +55℃; (6)storage temperature, Tstg: -40 to +80℃.
Features
Features: (1)display format: 640(w)×400(H) dots; (2)dot pitch ratio: 1:1; (3)input signal level: LS TTL level; (4)drive method: P-P symmetric drive; (5)structure: baseplate; (6)detachable DC/DC converter; (7)net weight: approx.480g(540g).

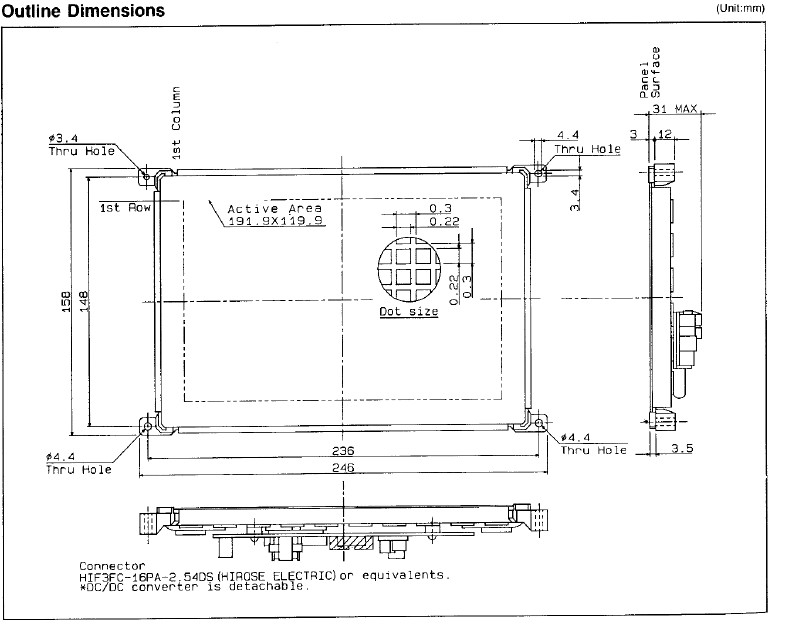

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LJ640U32 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
LJ640U28 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LJ640U32 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LJ640U34 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LJ64EU34 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LJ64H034 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LJ64H051 |
Other |
|
Data Sheet |
Negotiable |
|
||||
