Product Summary

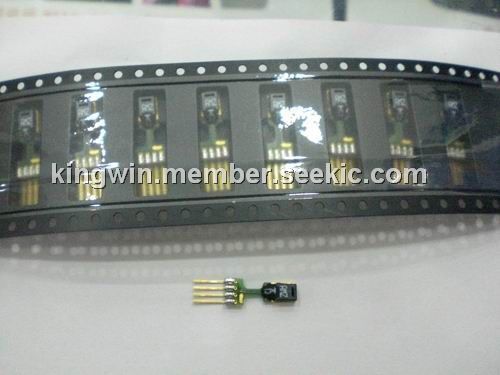

The SHT75 is a single chip relative humidity and temperature multi sensor module comprising a calibrated digital output. It is is supplied in either a surface-mountable LCC (Leadless Chip Carrier) or as a pluggable 4-pin single-in-line type package. Customer specific packaging options may be available on request.
Parametrics
Absolute maximum ratings: (1)Resolution: 0.5 to 0.03%RH, 0.03%RH max; (2)Repeatability: ±0.1%RH; (3)Range: 0 to 100 %RH; (4)Response time: 4 s typ; (5)Hysteresis: ±1 %RH typ; (6)Long term stability:< 0.5 %RH/yr typ.
Features
Features: (1)Relative humidity and temperature sensors; (2)Dew point; (3)Fully calibrated, digital output; (4)Excellent long-term stability; (5)No external components required; (6)Ultra low power consumption; (7)Surface mountable or 4-pin fully interchangeable; (8)Small size; (9)Automatic power down.

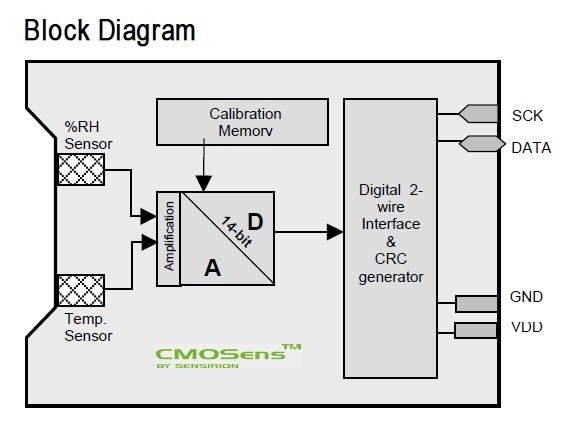

Diagrams
 |
 SHT7x |
Other |
|
Data Sheet |
Negotiable |
|
||||
