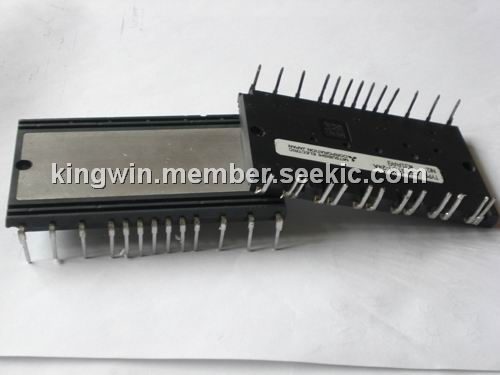

Product Summary

The CP15TD1-24A is a low profile, thermally efficient, transfer mold module. It is suitable for AC motor control, servo motors, robotics and HVAC inverters.

Parametrics

Absolute maximum ratings: (1)Junction Temperature, Tj: -20 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Mounting Torque, M4 Mounting Screws: 13in-lb; (4)Module Weight Typical: 52Grams; (5)Isolation Voltage, VISO: 2500Volts.

Features

Features: (1)Compact Package; (2)Only 5.7mm Thick; (3)One Package for Entire Family; (4)Thermistor; (5)Open Emitters.

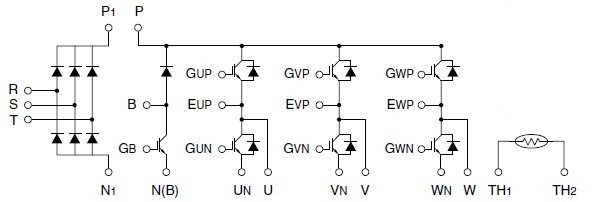

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CP15TD1-24A
CP15TD1-24A

DIP-CIB MOD 1200V 15A
Data Sheet
Negotiable
