Product Summary

The ZAG2230-11S is a EMC filter. It is suitable for AC power supply cased (mid-size).

Parametrics

Absolute maximum ratings: (1)Rated voltage Eac: 250V; (2)Rated current: 30A; (3)Test voltage Eac(V)[Between terminal and case]: 1500; (4)DC resistance(mΩ): 9max; (5)Operating temperature range(℃)[Including self-temperature rise]: -25 to +85; (6)With derating over(℃): 55; (7)Temperature rise(℃): 30max.

Features

Features: (1)The ZAG-11S series are EMC filters designed to prevent malfunctions in microcomputers. They employ advanced amorphous magnetic materials in the common mode choke coil to achieve superior performance characteristics; (2)They provide substantial attenuation of high-voltage pulses in power supply lines, exhibiting more than 20dB attenuation for a 2kV, 1μs pulse; (3)Leakage current is maintained at less than 0.75mA; (4)These filters are highly reliable and provide stable attenuation performance even in harsh environments, where the filters may be subjected to humidity, vibration, and shock; (5)Efficient manufacturing makes these filters highly cost-effective.

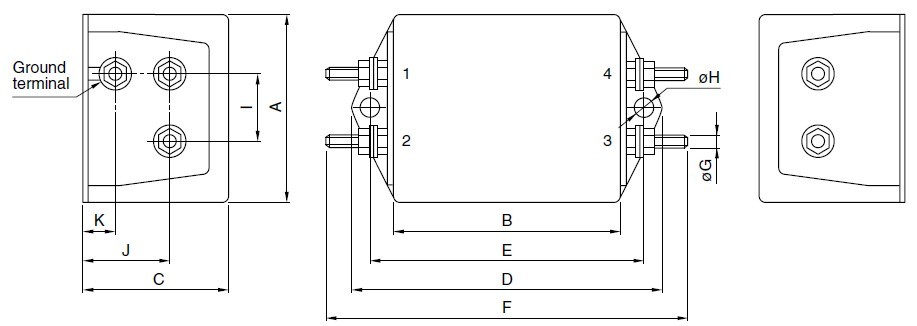

Diagrams
